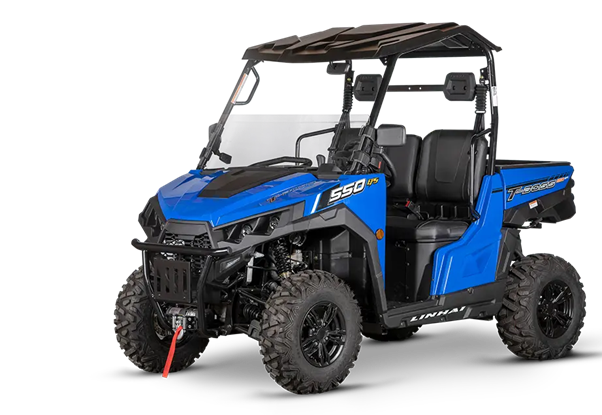

Linhai Off Road Vehicle Utv T-Boss 550
T-BOSS 550
Specification
Size: LXWXH: 2790x1470x1920 mm
Wheelbase: 1855 mm
Ground Clearance: 280 mm
Dry weight: 525 kg
Fuel Tank Capacity : 26L
Max speed : >70km/h
Drive System Type: 2WD/4WD
Engine
Engine model: LH188MR-A
Engine Type: Single cylinder,4 stroke, liquid – cooled
Engine Displacement: 493cc
Bore x Stroke (mm): 87.5×82 mm
Rated Power: 24/6500 (kw/r/min)
Horse Power:32.2 hp
Max. torque: 38.8N·m/5500 r/min
Compression ratio: 10.2:1
Fuel system: EFI
Starter: Electric starting
Transmission: H-L-N-R
Brakes & Suspension
Brake System Model
Front: Hydraulic Disc
Rear:Hydraulic Disc
Suspension Type
Front: Dual A arms independent suspension
Rear:Dual A arms independent suspension
Tires
Specification of tyre
Front: AT25x8-12
Rear: AT25x10-12
Colors
GREY-BLACK
