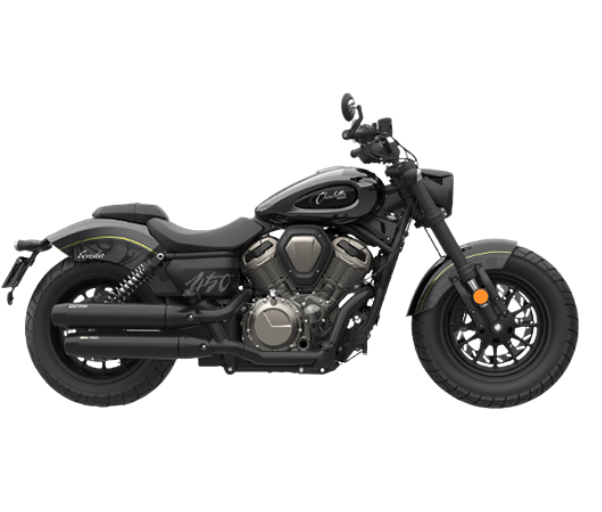

CHINCHILLA 500

Displacement (cc): 475.6
Type: V-2-cylinder / 4-stroke / 8-valve / SOHC
Bore x Stroke (mm): ø69×63.6
Max.power (Hp/rpm): 46.94 Hp at 9000 r/min
Max. torque (Nm/rpm): 42.0/7200
Compression ratio: 11.5:1
Fuel system: EFI
Valve train: DOHC
Ignition: TCI
Starter: Electric
Lubrication system: Pressure splash lubrication
Cooling system: Liquid-cooled

Gearbox: 6-speed
Final drive: Belt
Clutch type: Slipper clutch

Front wheel: Aluminum alloy
Front suspension: 41mm upside-down Telescopic forks
Front suspension travel (mm): 128.9
Front tyre: 150/80-16
Rear wheel: Aluminum alloy
Rear suspension: Dual shock-absorber, adjustable preload
Rear suspension travel (mm): 65
Rear tyre: 180/65-16
Front brake: Floating Disc, 4-piston caliper
Front brakes diameter (mm): 320
Rear brake: Disc, 2-piston caliper
Rear brakes diameter (mm): 260

Curb weight (kg): 215
Seat height (mm): 705
Overall LxWxH (mm): 2020X890X1150
Ground clearance (mm): 150
Wheelbase (mm): 1550
Fuel capacity (L): 16
Top speed (km/h): 145
Max. load (kg): 150

ABS: Yes
Traction control system (TCS): Yes

Dashboard type: LCD
USB charging port: Yes

BLACK
